Classes

Comparison between struct and class

Class contains

• a sequence of objects of various types
• a set of functions for manipulating these objects
• a set of restrictions on the access of these objects and function

C++ struct is class without class restrictions.

C struct is class without class restrictions and member functions.

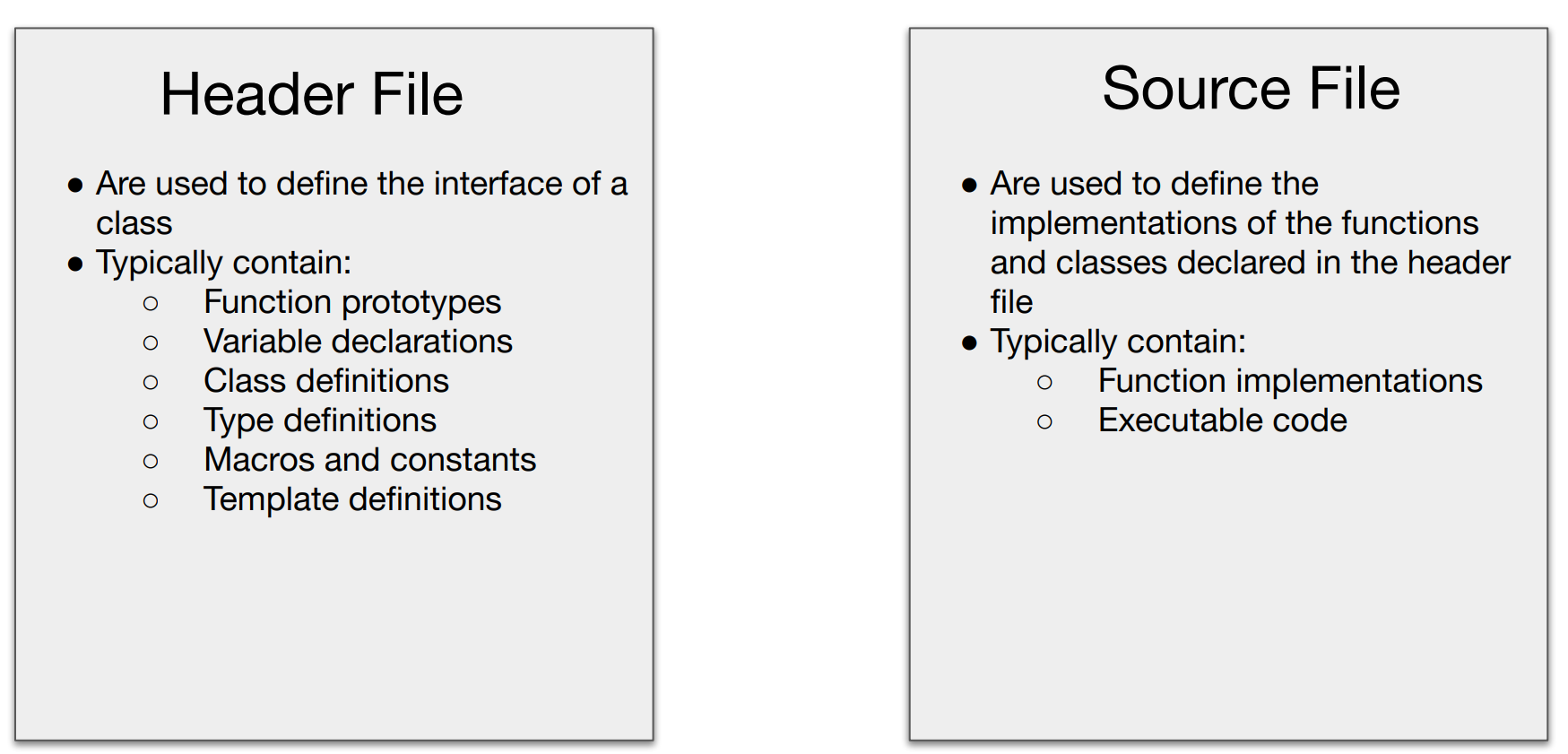

.h vs .cpp

In short, apart from function implementations and executable code, other stuff are usually stored in ".h" file.

Also, header file is interface,whereas source file is logic.

Class Design

1. A constructor and a destructor
2. Private member functions/variables
3. Public member functions (interface for user)

Demo:

lec7.h

#pragma once
#include <string>

class Student
{
private:
    std::string name;
    std::string state;
    int age;

public:
    /// constructor for our student
    Student(std::string name, std::string state, int age);
    Student();

    /// method to get name, state, and age, respectively
    std::string getName();
    std::string getState();
    int getAge();
};

lec7.cpp

#include "lec7.h"
#include <string>

/// Constructors
/// C++11 support "list initialization constructor" (similar to uniform initializaiton, but not the quite)
Student::Student() : name{"John Smith"}, state{"Oklahoma"}, age{17} {}

Student::Student(std::string name, std::string state, int age) : name{name}, state{state}, age{age} {}

/// Destructor
/// We don't have to define destructors explicitly
/// Just implement it in the source file
Student::~Student() {}

/// Member functions
int Student::getAge()
{
    return this->age;
}

std::string Student::getName()
{
    return this->name;
}

std::string Student::getState()
{
    return this->state;
}

Type aliasing

In C++, we prefer using to typedef in that:

They (using and typedef) are largely the same, except that using is compatible with templates, whereas the C style typedef is not.

Therefore, we can make slight adjustments to the code mentioned above in order to make it more concise.

#pragma once
#include <string>

class Student
{
private:
    using String = std::string;
    String name;
    String state;
    int age;

public:
    /// constructor for our student
    Student(String name, String state, int age);
    Student();

    /// method to get name, state, and age, respectively
    String getName();
    String getState();
    int getAge();
};

Class Hierarchy

Base Class and Subclass

Inclusion polymorphism can be implemented by base-class-sub-class hierarchical structure.

Example:

class Shape {
public:
    virtual double area() const = 0;
};

class Circle : public Shape {
public:
    Circle(double radius): _radius(radius) {}
    double area() const override {
        return 3.14 * _radius * _radius;
    }
private:
    double _radius;
};

class Rectangle : public Shape {
public:
    Rectangle(double height, double width): _height(height), _width(width) {}
    double area() const override {
        return _height * _width;
    }
private:
    double _height, _width;
};

Class Inheritance vs Container Adapter

Class inheritance is about subclass inheriting (virtual) methods from base class.

Container adapter provides interface for several classes and act like a template parameter.

Footnote: Polymorphism

There are three polymorphisms that are popular and broadly recognized in C++, namely:

• Ad-hoc Polymorphism

• Achieved through method overloading

• Allows for flexibility in return type, argument type, and implementation

  • This makes it highly adaptable

• Parametric Polymorphism

• Implemented using templates

• Return type, argument type, and implementation are strictly defined and determined by the templates

• subclass/inclusion polymorphism

• by class hierarchy

  • When we refer to "class hierarchy", we're specifically focusing on functions that are marked with the override keyword.

  class Base {
  public:
    virtual int func (double i) = 0;
  };

  class Derived : public Base {
  public:
      /// we consider this.
    int func (double i) override {
          return int(i);
      }

      /// not this!!!
      double func (int i) {
          return double(i);
      }
  };


• Consistent return type, argument type. Flexible implementation.
